主机型号：1

发电机型号：1

发电机功率：1KW

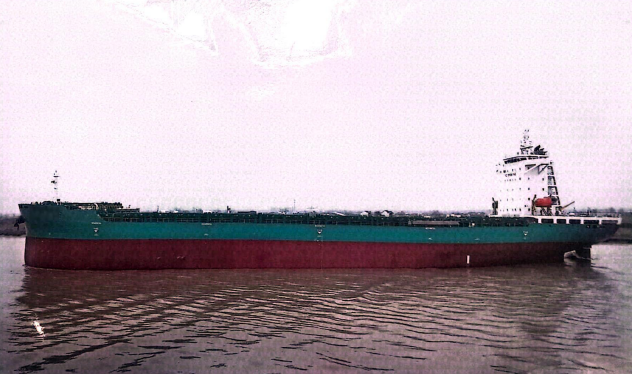

Class : CCS GT / NT 总吨/净吨 : 18711 / 10478 Deadweight 载重吨: 29901.3 dwt at -draft abt. 10.1 m Dimensions LOA总厂 LBP两柱间长 Beam (mould)型宽 Mould depth(型深) Designed Draft (设计吃水） : 167.55m : 163.00m : 27.3m : 14 m ： 10.1m Max. height : about 44 M (From even keel to top of antenna) 最大高度（龙骨至船舶最高处） Tank capacities (abt.100 % filled)仓容信息 Water ballast max. 压载水量（最大） Freshwater max. 淡水量（最大） Bunkers IFO重油 MDO轻油 : 9561.82M3 : 214.52M3 : 658.14M3 : 321.90M3 Container intake：集装箱装载量 20’ 40’ In holds舱内 On deck甲板 768 TEU 899TEU 376 FEU + xx TEU 444 FEU + xx TEU Total合计 1667TEU 820 FEU + xx TEU High cube containers (9’6” high)：高箱装载能力 3 tiers of high cube container can be loaded in each holds每个货舱内可装载3层9’6”高箱 Stability condition：稳性状态 Intakes are always subject to vessel’s stability, trim, deadweight, permissible stack weights, exact container weights, container lashing manual, subject to regulations of visibility and at Master’s discretion. 装载量始终限于船舶的稳定性、纵倾、载重量、允许的堆叠重量、准确的集装箱重量、集装箱捆扎手册，并受能见度规定的约束，由船长决定。 Reefer connections：冷藏箱插座 60 reefer plugs on deck甲板60个 0 reefer plugs in hold (No.1~5 hold)：货舱内0个 60 reefer plugs total (AC 380 V 50Hz) 合计60个（AC 380 V 50Hz） Stack weights积载重量 Container stack weights (all in metric tons per stack) 集装箱积载重量（公吨/积载） In hold货舱内 NO.1 20’ /40’ : 5X25=125MT(40ft on top),6X15=90MT/6X30=180MT, NO.2~NO.5 20’/40’: 4X30=120MT(40fT on top), 5x20=100MT/ 5X30=150MT Hatch cover舱盖 20’ /40’ : 65MT/90MT Distribution of container weights within a single 20’/40’ stack on deck to comply with the board manual for stowage and lashing of containers 甲板上单个20'/40'堆垛内集装箱重量的分配，以符合集装箱装载和绑扎手册 Fittings其他 • Fully cellularized in holds for 40’ containers. Alternatively 2 x 20’ units can be stowed into each 40’ compartment. 货舱内均为40’集装箱装载单元。或者，每个40’单元可存放2 x 20’单元 • Vessel is fully fitted with loose lashing materials, fittings and stacking cones for 20’ and 40’ units under and on deck (half-automatic twistlocks) 船舶完全配备捆扎材料、配件和扭锁，用于甲板上下的20’和40’集装箱（半自动扭锁） • Fully equipped with all modern nautical / communication systems 5 holds /9 hatches（No.1hold has 1 hatch, others have 2 hatches) – Weather-tight steel pontoon type hatch cover, No.1hatch has 2-panels,3-panels for others panel (open/close in sequence ) 配备所有现代航海/通信系统 5个货舱/9个舱口（第1个货舱1个舱口，其余货舱2个舱口）-风雨密舱口盖，第一舱2个面板，其余舱口3个面板（按顺序打开/关闭） Cargo hatch dimensions: 舱口尺寸 NO.1： L*B 12.64m*17.98m NO.2： L*B 12.64m*22.98m *2 NO.3： L*B 12.64m*22.98m *2 NO.4： L*B 12.64m*22.98m *2 NO.5： L*B 12.64m*22.98m *2 Speed / Consumption航速油耗 All figures are about and based on good weather conditions and smooth sea maximum Beaufort 2 and maximum Douglas Sea State 2, and basis design draft on even keel, in deep water with clean bottom and current-less waters, maximum 28 deg. Celsius : 所有数据都是基于良好的天气条件和波弗特2号和道格拉斯海况2号的良好海况，以及基准设计吃水深度，无污底，无顶流的深水中，最大28摄氏度气温： ME consumption：主机油耗 at normal sea only, MGO to be used when maneuvering condition 正常工况，机动航行时使用轻油 12.5 knots on about 13.5mtons IFO 180 12.0 knots on about 13.0mtons IFO 180 11.5 knots on about 12.0mtons IFO 180 11 knots on about 11.0mtons IFO 180 Auxiliary consumption：副机油耗 At sea: About 1.15 mt MGO (without reefer/cargo hold ventilation) 航行约1.15吨IFO180燃油（无冷藏箱、货舱通风状态） In port: About 0.65 mt MGO (without reefer/ventilation) 在港约0.65吨MGO（无冷藏箱、货舱通风状态） Boiler: About 1 mt MGO (in port)锅炉，约1吨 Vessel’s auxiliaries are designed to run on MGO but depending on load conditions and circumstances and at Chief Engineer's sole discretion, auxiliaries may burn MGO. MGO may be consumed for safety reasons. Charterers to provide sufficient quantity of MDO/MGO during sea passages for operating auxiliaries / generators in case of an emergency. 船舶的辅助设备设计为在MGO运行，但根据负载条件和情况，或在航道或紧急情况下并由轮机长全权决定，辅助设备可能会燃烧MGO。出于安全原因，可能会消耗MGO。租船人应提供足够数量的MGO Auxiliary consumption given above are in addition to that mentioned for the main engine. CHERRY 13823383044
